DX76
Details Specifications Videos Download Accessories Comparison Contact

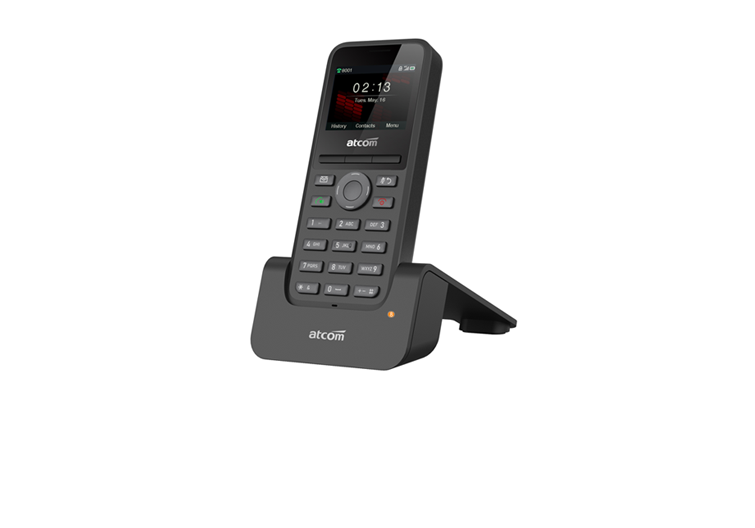

  • Cordless IP Phone

    DX76 is a 4G cordless IP phone that supports SIP protocol and 6 SIP accounts in 4G environment. It is a new generation of wireless products launchedby ATCOM based on many years of technical accumulation in the VoIP industry. DX76 is suitable for enterprises and families to replace traditionalcordless phones, Wi-Fi and DECT cordless IP phones. It is suitable for Cloud PBX and enterprise self-built IP PBX to deploy enterprise SIP extensionnumbers. Operators can also use DX76 to deploy PSTN numbers. DX76 also supports using mobile phone numbers to make VoLTE and 3G calls,and provides multiple protocol API interfaces for secondary development of third-party IP PBX, CRM, and recording systems. DX76 has super longstandby time and talk time, and the smart charging mode and smart power supply mode greatly extend the battery life.





    Support VoLTE call and 6 SIP accounts
    2.4 inch 178°IPS color screen, 320*240 pixel
    Soft key, navigation key, number key
    TYPE-C Charging port/Headset port




    Volume up/down key
    PTT key
    Nano SIM card slot






    USB TYPE-C docking station
  • Basic functions
    2.4 inch 178°IPS color screen, 320*240 pixel, Supportlocal Phonebook (up to 1000 ), Black list, Dialed / Received /Missed /Forwarded call (400 total), 5 kinds of ring tone (including own and customized), 8 levels of volume and Mute,Support phone lock, the Administrator / User level access control
    Quick to use features
    VoLTE Basic Feature: Call Waiting, Call Hold, Redial, Mute, 3-Ways Conferencing, Speed Dial, Voice Mail
    IP PBX Features
    SIP Basic Feature: 6 SIP accounts, Call Forward, Call Transfer, Call Waiting, Hotline, Call Hold, Auto Answer, Redial, Mute, DND, Speed Dia Local 3-Way Conferencing, , Voice Mail, Local Phonebook (up to 1000 ), Direct IP call withour sip proxy, Intercom, Paging Group pickup, Call pickup, Call park, Anonymous call & call rejection, Hold on music, Conference Call, Call Recording, DND&Call forward state synchronization, LDAP, XML remote phonebook, Action URL, Active URI, CSTA, Muticast paging
    Mult-language
    English, German, Italian, French, Spanish, Portuguese, Russian, Simplified or Traditional Chinese, Polish, Turkish, Hebrew
    Advanced Features
    LDAP, XML remote phonebook, Action URL, Active URI, CSTA, Multicast paging
    Audio Features
    ringtons (system ringtone or custom ringtone) article, 8 volume adjustable & Mute mode, Narrowband codec: G.711(a/μ), G.729A/B/AB, G.726, iLBC, OPUS, Wideband codec: G.722, L16, Support VAD, CNG, AEC, PLC, AJB, AGC, Full-duplex speakerphone with AEC
    Network Features
    4G(LTE) Features
    SupportLTETDD、LTE FDD
    Security
    TLS, HTTPS, SRTP (RFC3711), Digest authentication using MD5/MD5-sess, AES encryption for configuration files
    Configuration
    Configurable through web interface / phone LCD setting
    Batch deployment
    FTP/TFTP/HTTP/HTTPS, DHCP Option 66 or custom Option 128~254, PnP, Redirection ProvisioningService (RPS),TR069, Import/Export CFG file via web, Generate multiple configuration files via tool, Periodic check and update,SupportAtcom cloud manager platform
    Physical
    Host:1900mAH lithium battery, USB-TYPC-C charge port /headset portDocking station: USB-TYPC-C charge port，Main key: 3 soft keys, 5 navigation keys, 4 Function keys (VoiceMail, Mute, Answer+Hook key, End call+Power on/off key)Side key: 2 volumes key, 1 intercom key，Battery-powered standby time: SIP mode standby time of 150 hours; VoLTE mode standby time is 190 hours
    Temperature and Humidity
    Operating temperature: -10 ~ 50°C, Operating humidity: 10 ~ 90%
    Packaging information
    Host Size：55.6mm(L) * 134mm（W）* 21.2mm（H） Ducking Station Size：80mm（L）* 128mm（W）* 49.4mm（H） Whole Machine Sizs：80mm（L）* 154mm（W）* 128mm(H) Unit box size: 166mm (L) * 90mm (W) * 84mm (H), Gross weight:515g Carton size: 430mm (L) * 376mm (W) * 188mm (H), 20 units / carton, each carton gross weight : 11kg
    Certifications
    CE: EN 55032:2015/A11:2020 EN IEC 61000-3-2:2019 EN 61000-3-3:2013/A1:2019 EN 55035:2017/A11:2020
    Compatible PBX

  • Disassemble

    This video including split package, handle line & tripod mounting installation etc.

    Start-up

    This video including startup, quick settings etc

    Shortcut feature

    This video contains quick to use features that are commonly used in your phone

  • DX76 Datasheet
    DX76User manual
    DX76Quick installation guide
