Product Introduction

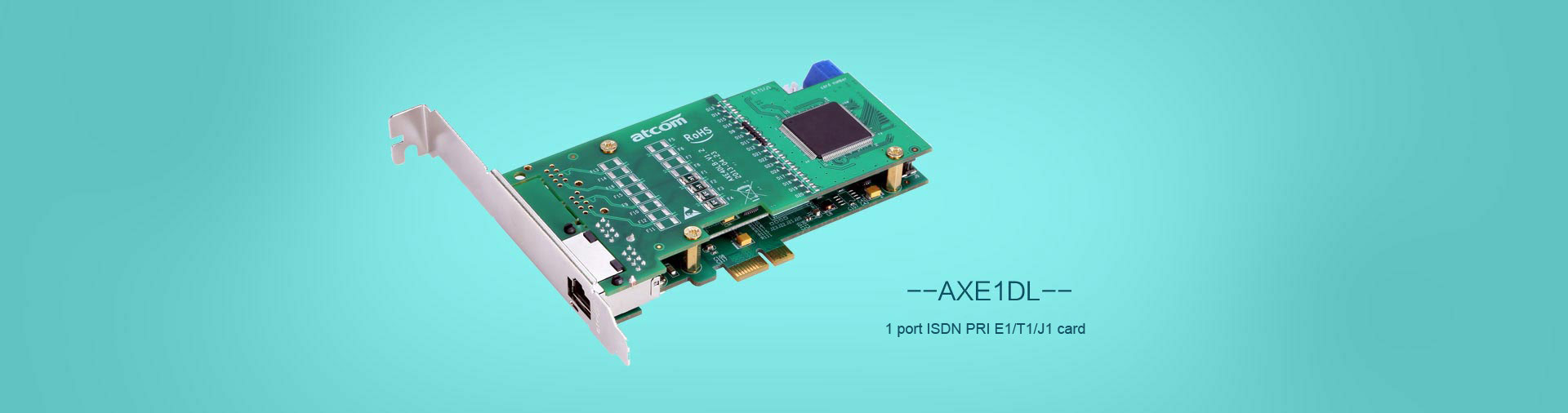

AXE1DL is PCI-E telephony card for Asterisk IP PBX system. It supports 1 ISDN PRI E1/T1/J1 port with echo canceller DSP module
available. Users can easily build their IP PBX system with the AXE1DL and PC with Asterisk installed. Because of the half length and
low profile design , it can be used in 2U server directly .

Features
ISDN PRI IP PBX , VoIP service provide, IVR system , VoIP gateway , call center , conference call, call back. Support standard telephony and data protocol ( including voice protocol PRI , CAS , CCS and data protocol like PPP , HDLC , Cisco HDLC )
One ISDN PRI E1/T1/J1 port. Install chan_ss7 and support SS7 , install Openr2 and support SS1.
Support Asterisk, Freeswitch Optional hardware echo canceller DSP.
Support Elastix Elastix certified
EuroISDN/4ESS(AT&T)/5ESS(Lucent)/DMS100 Audio mode : PRI CPE and PRI NET: EuroISDN/4ESS(AT&T)/5ESS(Lucent)/DMS100

Specification


Hardware
1.6-Ghz Pentium IV
512 MB RAM
PCI-E slot
Operating system
Linux operating system
Size
120mm (Height)*64mm (Length)

Modules



32 channels hardware echo canceller

Downloads

Firmware User manual Brochure Datasheet Quick installation guide Cautions


Comparison


  AXE400PL AX400P AXE800PN AXE4BL AXE2BL AXE1DL AXE2DL AXE4DL AXE4GN AXE2G4AN
 Channels 1-4
FXO/FXS		 1-4
FXO/FXS		 1-8
FXO/FXS		 4 ISDN
BRI ports		 2 ISDN
BRI ports		 1 ISDN
PRI/E1/T/J1
ports		 2 ISDN
PRI/E1/T/J1
ports		 4 ISDN
PRI/E1/T/J1
ports		 1-4 GSMports 1-2 GSM,
and1-4
FXO/FXS
ports
 PC interface PCI-E PCI PCI-E PCI-E PCI-E PCI-E PCI-E PCI-E PCI-E PCI-E
 Supported platform Asterisk ,
Freeswitch ,
Dahdi ,
Zaptel		 Asterisk ,
Freeswitch ,
Dahdi ,
Zaptel		 Asterisk ,
Freeswitch ,
Dahdi ,
Zaptel		 Asterisk ,
Freeswitch ,
Dahdi ,
Zaptel		 Asterisk ,
Freeswitch ,
Dahdi ,
Zaptel		 Asterisk ,
Freeswitch ,
Dahdi ,
Zaptel		 Asterisk ,
Freeswitch ,
Dahdi ,
Zaptel		 Asterisk ,
Freeswitch ,
Dahdi ,
Zaptel		 ATCOM
compiled
Asterisk/
Dahdi
version		 ATCOM
compiled
Asterisk
/Dahdiversion
  Certification Elastix Elastix Elastix Elastix Elastix Elastix Elastix Elastix Elastix Elastix
  Full length Support Support Support Support Support Support Support Support Support Support
  Low profile Support No No Support Support Support Support Support No No
  Accessories No No 1 to 4 ports Splitter No No No No No Antenna Antenna,
1 to 4
ports
Splitter
  Modules Single
FXO/FXS
Module
AX110X/
AX110S		 Single
FXO/FXS
Module
AX110X/
AX110S		 Dual
FXO/FXS
Module
AX210X/
AX210S		 No No E32L
Hardware
Echo
Canceller
DSP		 E64L
Hardware
Echo
Canceller
DSP		 E128L
Hardware
Echo
Canceller
DSP		 GS module：
GX01N		 GSM module:
GX01N;Dual
FXO/FXS
Module：
AX210X/
AX210S
  Dimension 140mm×64 mm 102mm×134mm 175mm×106mm 120mm×64mm 120mm×64mm 120mm×64mm 120mm×64mm 175mm×64mm 175mm×106mm 175mm×106mm
  Operating system Linux
  Application PBX, gateways, voice mail, IVR / call center, call hold, then grab, call forwarding, call transfer, caller caller display, call waiting queues, conferencing systems.
