Cost effective IP PBX
Smart IVR system
        Customized welcome prompt recorded by yourself
        Play different IVR according to different time period
Unlimited recording
        The unlimited recorded voice file could be saved on any server in LAN.
 Each user have their own independent login account
Each user can login the PBX with their own account and make necessary
configuration according to his own preference.
Easy to configure and install
We customize the user interface web page with a great many icons
and helpful information for users to quick configure their PBX and
deploy to the IP Phones.



Specification


Basic Features

Blacklist;
Caller ID;
Call Back;
Call Detial Records (CDR);
Call Pickup (Group Pickup & Directed Pickup);
Call Parking;
Call Queues;
Call Recording;
Call Routing;
Call Transfer (Blind Transfer & Attend Transfer);
Call Waiting;
Conference;
Do Not Disturb (DND);
Follow me;
Interactive Voice Response (IVR);
Intercom/Paging;
Music on Hold (MoH);
Ring Group;
Skypy Integration (Skype for SIP);

Advanced Applications

Call Recording;
Direct Inward System Access (DISA);
Dual-OS Redundancy;
External Storeage Supported;
IP Restriction;
Personal Web Portal;
Storage Quota Privilege;
Tcpdump diagnostic tool;
Auto Provisioning;
Customized Dialplan;

Product parameters

SIP version: SIP(RFC3216);
Concurrent calls : 8;
MAX extension registration : 64;

Audio and Video

Audio Codec：G711(A/μ)， G.722，G726，G729，GSM，Speex，ADPCM；
Video Codec：H261，H263，H263P，H264；

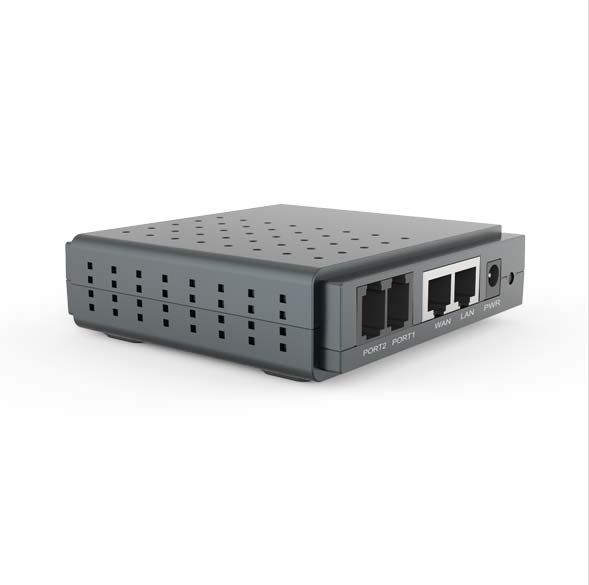

Hardware

CPU：400MHz；
SDRAM: 64M ；
NAND Flash: 256M ；
LAN：1 10 / 100Mbps；
WAN：1 10 / 100Mbps；
PSTN：2RJ11；
Power consumption：5W；

Network

DHCH Server / Client:Yes;
DDNS:Yes;
Static IP:Yes;
VLAN (802.1Q):Yes;
VPN:Yes (PPTP);
Security: Firewall;

Installation & Configuration

Installation:Desktop or Wall mount;
Configuration:Web based configuration；

Package

Storage Temperature:20°C - 65°C (-4°F - 149°F)；
Operating Temperature：10 - 90%，Non-condensing；
Operating Humidity ：0°C - 40°C (32°F - 104°F)；
Dimension ：100 x 100 x 28mm；
Weight：0.4Kg；

Workable modules
Workable ATCOM modules：max 2 FXO or 2 FXS ports
Dual FXS module
AX210S		 Dual FXO module
AX210X		 FXO+FXS dual module
AX210XS



Downloads

Firmware User manual Brochure Datasheet Quick installation guide Cautions


Comparison


  IP02 IP08 IP2G4A IP4G
  Protocol SIP(RFC3261) SIP(RFC3261),
IAX2(RFC5457)		 SIP(RFC3261),
IAX2(RFC5457)		 SIP(RFC3261),
IAX2(RFC5457)
  GUI Version 4.0 firmware Version 4.0 firmware Version 4.0 firmware Version 4.0 firmware
  LAN 1 x 10/100Mbps 1 x 10/100Mbps 1 x 10/100Mbps 1 x 10/100Mbps
  WAN 1 x 10/100Mbps 1 x 10/100Mbps 1 x 10/100Mbps 1 x 10/100Mbps
  MAX FXO/FXS 2 8 4 0
  MAX GSM 0 0 2 4
  MAX Extensions 64 128 128 128
  Concurrent calls 8 16 16 16
  Voice mail 1000 Minutes on board 1000 Minutes on board 1000 Minutes on board 1000 Minutes on board
  VoIP trunk MAX 32 MAX 32 MAX 32 MAX 32
  SIP trunk MAX 32 MAX 32 MAX 32 MAX 32
  Dial plan MAX 32 MAX 32 MAX 32 MAX 32
  Inbound Plan MAX 64 MAX 64 MAX 64 MAX 64
  IVR MAX 32 MAX 32 MAX 32 MAX 32
  Conference call MAX 16 MAX 16 MAX 16 MAX 16
  Paging group MAX 16 MAX 16 MAX 16 MAX 16
  Paging Person MAX 20 MAX 20 MAX 20 MAX 20
  Intercom group MAX 16 MAX 16 MAX 16 MAX 16
  Intercom Person MAX 20 MAX 20 MAX 20 MAX 20
  DISA MAX 16 MAX 16 MAX 16 MAX 16
  Call list MAX 16 MAX 16 MAX 16 MAX 16
  Black List MAX 128 MAX 128 MAX 128 MAX 128
  IVR prompt MAX 32 MAX 32 MAX 32 MAX 32
  MOH MAX 16 MAX 16 MAX 16 MAX 16
  Modules MAX 2 Port FXS MAX 2 Port FXO,1 Port FXS + 1 Port FXO MAX 8 Port FXS MAX 8 Port FXO,6 Port FXS + 2 Port FXO 4 Port FXS + 4 Port FXO2 Port FXS + 6 Port FXO MAX 4 Port FXS + 2 Port GSM MAX 4 Port FXO + 2 Port GSM 2 Port FXS + 2 Port FXO + 2 PortGSM MAX 4 Port GSM
  Voice Codec G711(A/μ),G.722,G726,
G729,GSM,Speex, ADPCM		 G711(A/μ),G.722,G726,
G729,GSM,Speex, ADPCM		 G711(A/μ),G.722,G726,
G729,GSM,Speex, ADPCM		 G711(A/μ),G.722,G726,
G729,GSM,Speex, ADPCM
  Video Codec H261,H263,H263P,H264 H261,H263,H263P,H264 H261,H263,H263P,H264 H261,H263,H263P,H264
