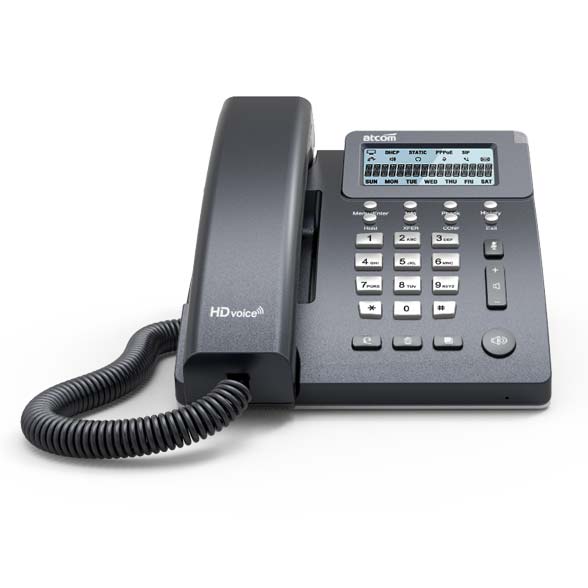

High cost effective IP phone |
|
 |
Simple style , eazy to use , rich function , clear voice , stable performance |
|
|
Dual core CPU is the guarantee of high quality IP phone |
|
|
|
Segment LCD also has many icons to show the status |
|
|
|
Compatible with major IP PBX platforms |
|
|
|
Easy to install |
|
|
Phone functions Phone functions:3 ways to make or receive call – handset/headset/hand-free speaker; Support caller ID , auto answer , DND and call reject; Support speed dial , redial , mute and call holding; Support point to point calls via IP address and SIP URL; Support 3 ways conference call; Support call transfer( blinded transfer , attendant transfer and semi-attendant transfer); Support call forward ( always forward , busy forward or no answer forward); Support hotline and flexible dial plan configuration; IP PBX function: Anonymous Call, Anonymous Call Rejection; Synchronization Message Waiting Indicator (MWI); Voicemail , call recording; Call on hold , call pick up; Paging and intercom; |
Hardware Specification 2*263MHZ dual core MIPS processor;2.8 inch segment LCD; 27 keys; Dual RJ45 10.100Mhz Ports; 2 RJ9 ports ( for handset and headset); Power adapter AC 90-240V , DC 9V1 A; Standby power consumption <1W , working power consumption 2.5W; Support PoE ( power over eternet)T810P; Support wall mounting; Working temperature : -10 ℃– 50 ℃; Working humid : 10%-95% ; |
Network features Support SIP V1(RFC2543), V2(RFC3261);Support backup server; Support proxy server and point to point connection; Support IP/DHCP/PPPoE dial; Support FTP/DHCP/PPPoE client; Support Telnet/HTTP/HTTPS service; Support SNTP protocol; Support DNS SRV（RFC3263; Support DNS client and buil-in NAT/DHCP service; Support STUN; Support 3 DTMF ways,RFC2833 and SIP INFO; Support router and bride mode; Logout on web GUI; |
Software features UI and WEB Support multiple language;User friendly UI and WEB design; Configuration wizard for first time use; Support 100 contacts in phone book and 100 call history record; Support dial assistant , match the number in smart ways; Support black list; Auto adjusted background light ; Adjustable level of background light brigntness; |
|
Voice feature Support HD voice codec L16G and G.722;Support G.711a/u,G.726，G.729a/b，G.723,iLBC codes; Support VAD(Voice Activity Detector) and CNG(conformation noise gain); Support AJB ( auto Jit buffer) , AEC ( voice echo canceller) AGC ( voice gain control); 10 broadband rings and 2 customized rights by users; |
Management Support 3 ways to manage the phones : Web GUI , phone keyboard and auto configuration in FTP/TFTP/HTTP/HTTPS/PnP;Configuration wizard on web UI; Support SNMP; |
Security Support VLAN;Support L2TP VPN; Support 802.1X; Support 2 different access levels- admin and user; Support SRTP and HTTPS protocol ( client/server); |
Package Dimension of single unit （16.3 x 11.8 x 18.5）;Weight :1.0KG; Packing size （22.6x 21.8 x 8.1）cm; Preserve temperature -40 - -70℃; Preserve humid level: 10-95%; |
|
Certification |
|||
|
|||
Models |
| AT810 Models | PoE |
|
AT810
|
N |
| AT810P | Y |
