A41
  • Management Level IP Phone

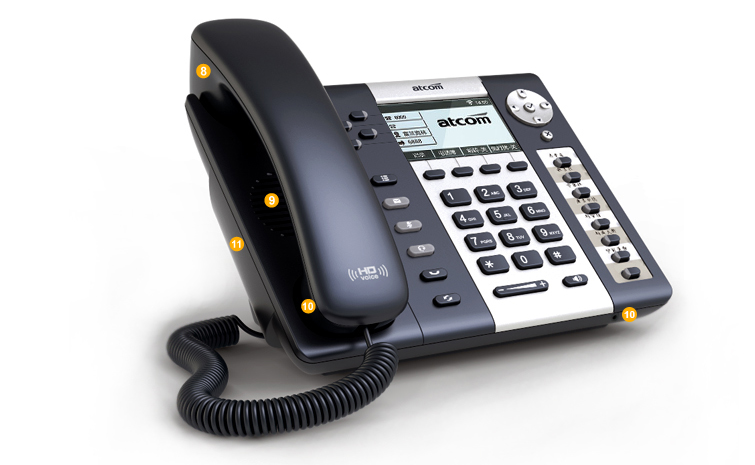

    A41 IP Phone is a dynamic business communications solution for executives and professionals. Designed by“efficiency of working, visual operation, HD voice, exquisite detail ”. It incorporates 3.2" 224 x 128 pixel LCD with backlit, integrated 8 BLF keys. Support dual-port Ethernet, PoE, EHS wireless headset and dialing expansion module ports. Its "3W high-power loudspeaker hands-free, 5- party conference, higher level of ZRTP encryption and innovative appearance" are highlight advantages in management level IP Phone.

    4 SIP accounts (With dual-color LEDs)
    224 x 128-pixel FSTN 4 Level grey LCD
    LED Phone status indicator
    Silver metallic paint keypad
    8 BLF key(With dual-color LEDs)
    Silver metallic paint surface
    Keypad pervious to light

    HD full range telephone receiver
    3W high-power loudspeaker
    Anti-interference microphone
    Super big chamber, super hands-free



    Support LCD expansion module

      Boot page

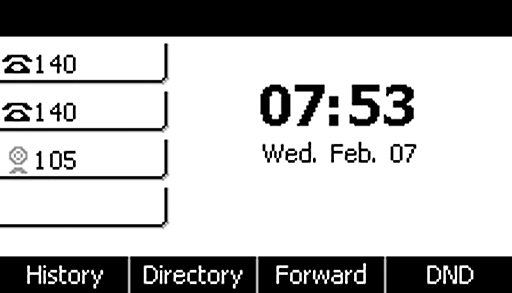

      Standby page

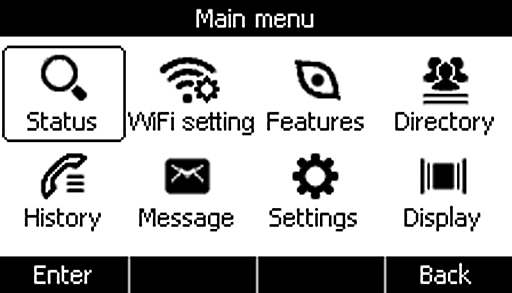

      Menu

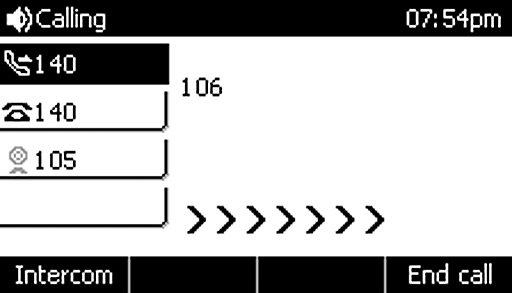

      Dialing

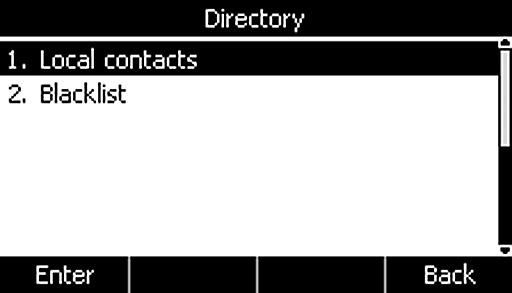

      Phone book
      Language selection

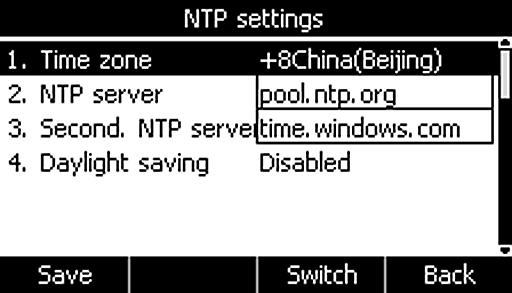

      Timezone selection
  • Basic functions
    3.2" 224 x 128-pixel FSTN 4 Level grey LCD,. 4 SIP accounts, Call Forward, Call Transfer, Call Waiting, Hotline, Call Hold, Auto Answer, Caller ID, Redial, Mute, DND, Local 9-Way Conferencing, Speed Dial, Voice Mail, Local Phonebook (up to 1000 entries), Direct IP call without SIP proxy, Black list, Dialed/Received/Missed/Forward call (total 400), Call Center Headsets mode,support EHS headset.
    Quick to use features
    25 Programmable keys; One key reach to the menu; One key to read phone information; BLF quick setting; Support phone book intelligent search; Dial assistant.
    IP PBX Features
    Supports Intercom, Paging, Call pickup, Call park, Anonymous call, Anonymous call rejection, Hold on music, Conference Call, Group pickup, DND&Call forward state synchronization, Call Recording.
    Mult-language
    English, German, Italian, French, Spanish, Portuguese, Russian, Chinese, Arabic, Polish, Turkish ,Hebrew
    Advanced Features
    Multicast, LDAP address book, XML remote address book, Action URL
    Audio Features
    10 (built-in+customized) ring tones, 8 levels adjustable volume + mute mode, Narrowband codec: G.711(a/μ), G.729A/B/AB, G.726, iLBC, Wideband codec: G.722, L16, Support VAD, CNG, AEC, PLC, AJB, AGC, Full-duplex speakerphone with AEC.
    Network Features
    IPv4 & IPv6, VLAN, LLDP, OpenVPN, IEEE802.1X, STUN Intranet penetration,Rport; SIP connection mode: proxy mode, P2P direct mode, DNS SRV(RFC3263), 3 DTMF modes: In-band, RFC2833, SIP INFO; Built-in HTTP / HTTPS web server, LAN / PC: bridging mode, web capture function, PC port capture package function, Syslog.
    WiFi Features
    Security
    TLS、HTTPS、SRTP protocol (RFC3711), ZRTP(special version), support 'Accept trusted server only', support information verification mechanism MD5/MD5-SESS, support AES encryption algorithm (profile encryption), support four level phone lock, administrator/user hierarchic pattern
    Configuration
    Plug and Play Configuration: implemented base on server, manual configurate: local WEB page configuration, LCD user interface configuration.
    Batch deployment
    HTTPS / HTTP / FTP / TFTP / RPS / PnP / DHCP Option 66, TR069, WEB import and export configuration templates, configuration file batch generation tool, periodic testing and updating
    Physical
    Power Interface: DC 5V-1A, PoE power supply: IEEE 802.3af Class 2 2x RJ45 100/1000M adaptive Ethernet ports, 1x RJ9 headphone jack, 1x RJ9 handset jack. 1 status indicator, 4 line keys, 4 soft keys, 5 navigation keys, 1 volume keys, 8 function keys (menu, cancel, hold, voicemail, mute, headphone, redial, hands-free)
    Temperature and Humidity
    Operating temperature: -10 ~ 50℃
    Storage temperature: -10 ~ 50℃
    Operating humidity: 10 ~ 90%
    Packaging information
    Qty/CTN: 10 PCS, G.W/CTN: 15KG, Giftbox size: 325mm(L)*210mm(W)*80mm(H) Carton Meas: 425mm(L) *415mm(W) *345mm(H)
    Certifications
    CE: EN60950,EN50332,EN300328 V1.9.1 FCC: Part15,Part15.247
    Compatible PBX
  • Disassemble

    This video including split package, handle line & tripod mounting installation etc.

    Start-up

    This video including startup, quick settings etc

    Shortcut feature

    This video contains quick to use features that are commonly used in your phone

  • A41 Datasheet
    A41User manual
    A41Quick installation guide
  • AET

    ●4.3'' , 272 x 480 pixels, color LCD

    ●Colorful feature icons

    ●16 programmable keys with Dual-color LED

    ●Up to 3 pages,can be expanded 44 keys

    ●Two RJ45 expansion port

    HB12

    ●HB12 Double ear
    ●Anti-noise Microphone, high quality voice.
    ●International standard hearing protection
    ●Anti-static protection
    ●Lightweight, comfortable wearing experience

    HB11

    ●HB11 single ear
    ●Anti-noise Microphone, high quality voice.
    ●International standard hearing protection
    ●Anti-static protection
    ●Lightweight, comfortable wearing experience

  • Model A68X A48X A41/A41W A2x A1x AET CT1X
    Level Executive level Management level Management level Entry-level Entry-level Executive level
    Call center
    SIP 6 4 4 2 1 2
    LCD

    4.3" TFT LCD

    480x272 Pixel

    3.2" TFT LCD
    462x278 Pixel

    4 Grayscale LCD

    224x128 Pixel

    Black&White LCD

     132x58 pixel

    Black&White LCD

     132x52 pixel

    4.3”TFT LCD

     480x272 Pixel

    Black&White LCD

     132x52 pixel

    Ethernet Port Gigabit Gigabit Million

    Gigabit/Million

    Gigabit/Million
    Million
    2.4G Wi-Fi

    Yes(A68W only)

    Yes(A48W only)

    Yes(A41W only) Yes(A20W only) Yes(A10W only) No No
    2.4GHz+5GHz Wi-Fi

    Yes(A68WAC only)

    Yes(A48WAC only)

    No Yes(A20WAC only) No No No
    PoE Yes Yes Yes Yes Yes Yes Yes
    LED 15 13 13 3 1 16 8
    Key 44 42 42 31 29 16 22
    Line Key 6 4 4 2 0 0 0
    BLF
    8 8 8 0 0 16 4
    BLF Number display LCD(376x96) Handwriting Handwriting No No

    4.3”TFT LCD

    480x272 Pixel

    Handwriting
    Programmable keys 39 25 25 14 12 16 4
    Headset Port Yes Yes Yes Yes Yes Yes
    EHS Yes Yes Yes No No No No
    Expansion Module AET AET AET No No No No
    Wall Mount No
    No No Yes Yes No No
    Multiparty Conference 9-way conference 9-way conference 5-way conference 5-way conference 5-way conference 5-way conference
    Language English, German, Italian, French, Spanish, Portuguese, Russian, Chinese Simplified, Chinese Traditional, Arabic, Polish, Turkish, Hebrew.
    Basic Function Hotline, Call hold, Call waiting, Auto answer, Call forward, Call transfer, Redial, Mute, Do not disturb, 5-9 Way conference, Speed dial, Voicemail, Local phone book (up to 1000pcs), IP address point-to-point direct dial, Blacklist, Missed / received / unplugged / transferred calls (400pcs in total), Headset call center mode.
    Convenient Features Programmable keys; One key reach to the menu; One key to read phone information; BLF quick setting; Support phone book intelligent search; Dial assistant.
    IP PBX Function Supports Intercom, Paging, Call pickup, Call park, Anonymous call, Anonymous call rejection, Hold on music, Conference Call, Group pickup, DND&Call forward state synchronization, Call Recording.
    Advanced Features Multicast, LDAP address book, XML remote address book, Action URL
    Network features Pv4 & IPv6, VLAN, LLDP, OpenVPN, IEEE802.1X, STUN Intranet penetration,Rport; SIP connection mode: proxy mode, P2P direct mode, DNS SRV(RFC3263), 3 DTMF modes: In-band, RFC2833, SIP INFO; Built-in HTTP / HTTPS web server, LAN / PC: bridging mode, web capture function, PC port capture package function, Syslog.
    WiFi feature Support IEEE 802.11b/g/n protocol 2.4G band、802.11AC protocol 2.4G+5.8G dual band、IEEE 802.11e QOS IEEE802.11i(WPA,WPA2) verification method, WPA/WPA2 enterprise certification.
    Security TLS、HTTPS、SRTP protocol (RFC3711), ZRTP(special version), support 'Accept trusted server only', support information verification mechanism MD5/MD5-SESS, support AES encryption algorithm (profile encryption), support four level phone lock, administrator/user hierarchic pattern.
    Configuration Local WEB page configuration, LCD user interface configuration.
    Batch deployment HTTPS / HTTP / FTP / TFTP / RPS / PNP / DHCP Option 66, TR069, WEB import and export configuration templates, configuration file batch generation tool, periodic testing and updating.
